Stainless steel is a versatile choice for many applications. However, welding stainless steel can be tricky due to its unique properties, such as its tendency to warp under high heat and its sensitivity to oxidation. When done correctly, using a MIG welder to weld stainless steel is an efficient and effective method.
This guide will walk you through the process, highlighting essential tips and techniques to ensure strong, clean welds.

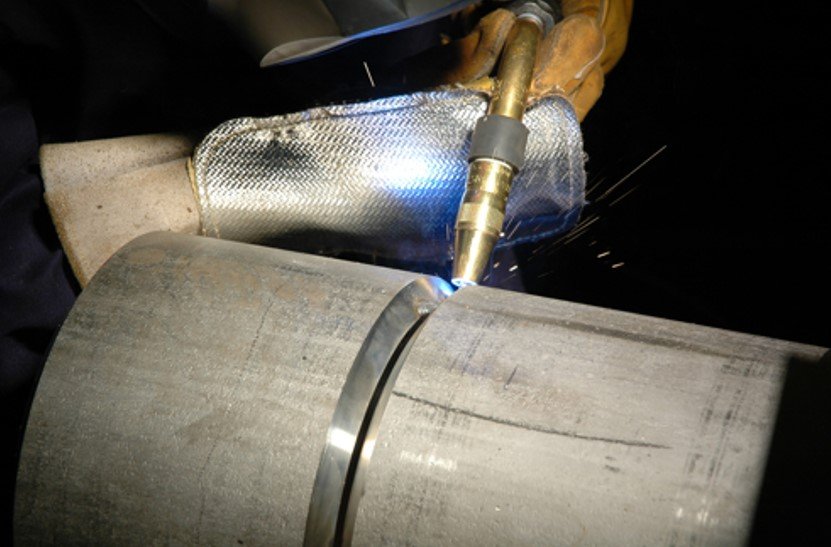

MIG Welding Stainless Steel: A Practical Guide
MIG welding stainless steel combines precision with speed, making it a preferred choice for many welders. You need the right setup, tools, and techniques to achieve the best results. Let’s break down the process step by step.
- Choose the Right MIG Welder
Use a welder with adjustable voltage and amperage settings. This allows you to fine-tune the heat input, which is crucial for preventing warping and maintaining stainless steel’s structural integrity. - Select the Proper Filler Wire
Opt for a filler wire compatible with the grade of stainless steel you’re welding. Common choices include ER308L and ER316L. These wires ensure strong bonds and resist corrosion. - Shielding Gas Selection
Use a shielding gas mix of 90% helium, 7.5% argon, and 2.5% carbon dioxide. This combination minimises oxidation, reduces spatter, and promotes clean welds. Avoid pure CO2, which can cause excessive heat and compromise the weld quality. - Prepare the Stainless Steel Surface
Clean the surface thoroughly to remove dirt, grease, or oxides. Use a stainless steel wire brush or a dedicated grinder to avoid contamination from other metals. - Set the Correct Parameters
Adjust the voltage, wire feed speed, and travel speed based on the thickness of the stainless steel. Start with lower heat settings and increase gradually to prevent overheating. - Practice Proper Technique
Maintain a consistent welding speed and angle at 10 to 15 degrees. Use a push technique to keep the weld pool under control and ensure a smooth, even bead. - Control Heat Input
Stainless steel is sensitive to heat, so avoid excessive dwell time in one area. Use intermittent welding or back-stepping techniques to distribute heat and minimise warping.
Preparing Stainless Steel for MIG Welding
Proper preparation is essential when welding stainless steel to ensure a strong, clean weld. Here are the key steps you should follow:
Clean the Surface
Stainless steel is prone to surface contaminants like oils, dirt, and oxides that can affect the weld quality. Start by thoroughly cleaning the metal. Use a dedicated stainless steel wire brush or grinder to remove rust, grease, or mill scale. To prevent cross-contamination, avoid using tools that have been in contact with other metals.
Deburr the Edges
Sharp edges can cause stress concentrations in the weld and lead to cracking. Deburr any sharp edges or corners using a grinder or file. This also helps create a more uniform surface for welding.
Check for Surface Cracks
Inspect the stainless steel for any surface cracks, as they can be a weak point in the weld. If cracks are present, they must be repaired before welding.
Proper Fit-Up
Ensure that the pieces to be welded are properly aligned. Gaps and misalignment can lead to poor penetration and weak welds. Use clamps or fixtures to hold the workpieces in place during welding.
Preheat (if necessary)
Preheating can help minimize thermal stresses and reduce the risk of cracking for thicker stainless steel. Preheating should be done carefully to avoid overheating the material. Always refer to the manufacturer’s guidelines on preheating temperatures for the specific type of stainless steel.
Choosing the Right Wire and Shielding Gas
Selecting the correct filler wire and shielding gas is crucial to achieving high-quality MIG welds on stainless steel. The filler wire you choose should match the type and grade of stainless steel you’re welding. Common options include ER308L, ideal for welding 18-8 stainless steel (like 304), providing good corrosion resistance and weldability. ER316L is used for welding stainless steel in corrosive environments, like marine applications, as it contains molybdenum for enhanced corrosion resistance. ER309L is designed for welding dissimilar metals, such as stainless steel to mild steel.
Wire size is also an important consideration. For thin stainless steel (up to 1/8 inch), 0.023 or 0.030-inch wire is typically used. For thicker materials, above 1/8 inch, 0.035-inch wire or larger is recommended. Choosing the right wire size ensures proper melt and fusion without causing excess spatter or weak welds.
Equally important is the selection of shielding gas. A 90/10 argon and CO2 mix provides a stable arc, minimal spatter, and good penetration, making it ideal for welding thinner stainless steel sections. A 90/7.5/2.5 argon and helium mix is preferred for thicker stainless steel or high-speed welding. Adding helium creates a hotter, faster weld pool, improving penetration. Pure CO2 should be avoided, as it can result in excess spatter and poor weld quality, particularly on stainless steel.
Lastly, proper gas flow is crucial for achieving optimal results. Depending on the material thickness and welding conditions, the flow rate should typically be between 20 to 30 cubic feet per hour (CFH). Too little gas flow may lead to oxidation, while excessive flow can cause turbulence and affect weld quality.

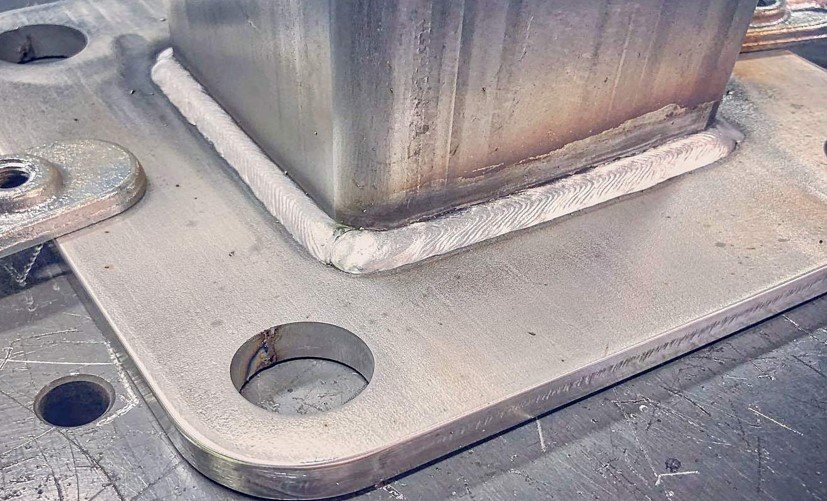

Managing Heat Input to Avoid Distortion
Controlling heat input is crucial when welding stainless steel to prevent distortion and maintain the integrity of the material. Stainless steel is sensitive to heat, and excessive heat can lead to warping, discolouration, and compromised strength. To avoid these issues, it’s important to manage both the heat of the weld pool and the overall thermal cycle.
One effective way to control heat input is by adjusting your MIG welder for stainless steel settings. Start by using lower amperage and increasing the wire feed speed. This will help you achieve a good weld without overloading the material with heat. If the heat becomes too concentrated in one spot, it can cause the stainless steel to warp or even crack. Therefore, it’s important to maintain a consistent welding speed and avoid lingering too long in one area.
Additionally, controlling the heat input can be achieved by using techniques like intermittent welding or back-stepping. Intermittent welding involves making short weld beads with pauses between them, allowing the material to cool before continuing. Back-stepping, on the other hand, involves welding in the opposite direction to the original weld, helping distribute the heat more evenly and reducing the distortion risk.
When working with thicker stainless steel, it may be necessary to apply preheat or use a low heat input to help avoid sudden temperature fluctuations that could lead to distortion. Preheating ensures the material is at a more uniform temperature before welding begins, reducing the chances of warping.
Common Issues and How to Prevent Them
Several common issues can arise when welding stainless steel using an MIG welder. Understanding these potential problems and how to prevent them is key to achieving high-quality, durable welds.
Porosity
Porosity occurs when gas pockets form in the weld, creating a porous surface. This happens when the shielding gas doesn’t properly protect the weld pool from atmospheric contamination, leading to trapped air or moisture. To prevent porosity, ensure you use the correct shielding gas mixture and maintain proper gas flow. Additionally, clean the stainless steel thoroughly before welding to remove any contaminants that could cause gas pockets.
Spatter
Excess spatter can lead to an uneven weld bead, making post-weld cleanup more difficult. Spatter often results from improper voltage, too high of a wire feed speed, or inadequate shielding gas coverage. To reduce spatter, adjust the voltage and wire feed settings to the recommended levels for your material thickness. Also, check that your shielding gas flows correctly, as inconsistent gas coverage can lead to spatter.
Lack of Fusion
Lack of fusion occurs when the weld metal doesn’t properly bond with the base material, leaving weak points in the weld. This is often caused by low heat input, incorrect technique, or insufficient penetration. To avoid lack of fusion, ensure that you’re using the proper heat settings for the thickness of your material and applying consistent welding speed and technique. You may also need to adjust the angle of your torch to achieve better penetration.
Distortion
As mentioned earlier, distortion occurs when the heat from the welding process causes the material to warp or bend. This can be minimized by controlling heat input, using intermittent or back-step welding techniques, and ensuring the workpiece is properly clamped. Additionally, preheating thicker stainless steel before welding can help prevent sudden temperature changes that lead to distortion.
Cracking
Stain steel welds crack due to excessive heat, improper filler material, or high residual stresses. To avoid cracking, ensure you are using the correct filler wire for your stainless steel grade and avoid excessive heat input, which can create brittle welds. Cooling the weld area gradually and avoiding rapid cooling methods can also reduce the risk of cracks.
Conclusion
When done correctly, MIG welding stainless steel is a powerful technique that produces strong, clean welds. Key steps include selecting the right filler wire and shielding gas, preparing the material, and managing heat input. Proper technique helps prevent common issues like porosity, spatter, and distortion. You can achieve professional-quality welds by staying mindful of these factors and consistently practicing. With the right approach, MIG welding stainless steel becomes a straightforward and reliable process for various applications.
